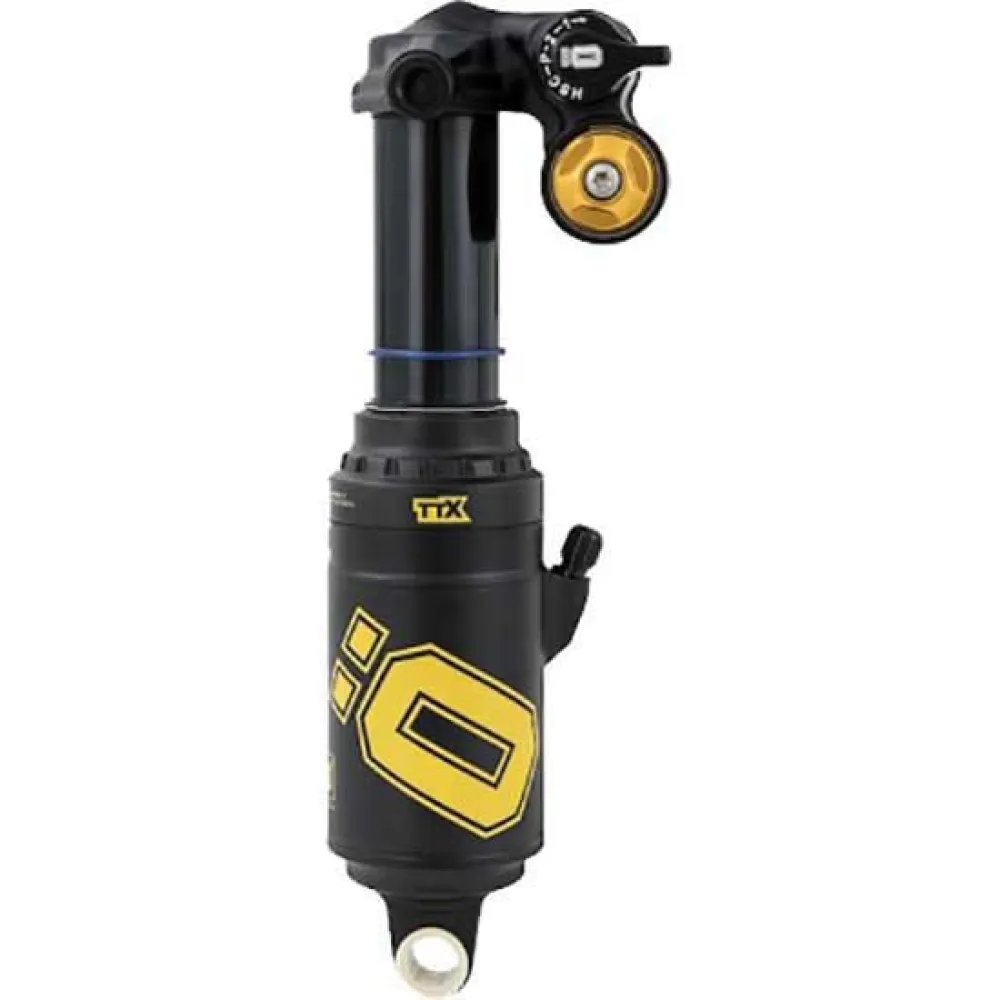

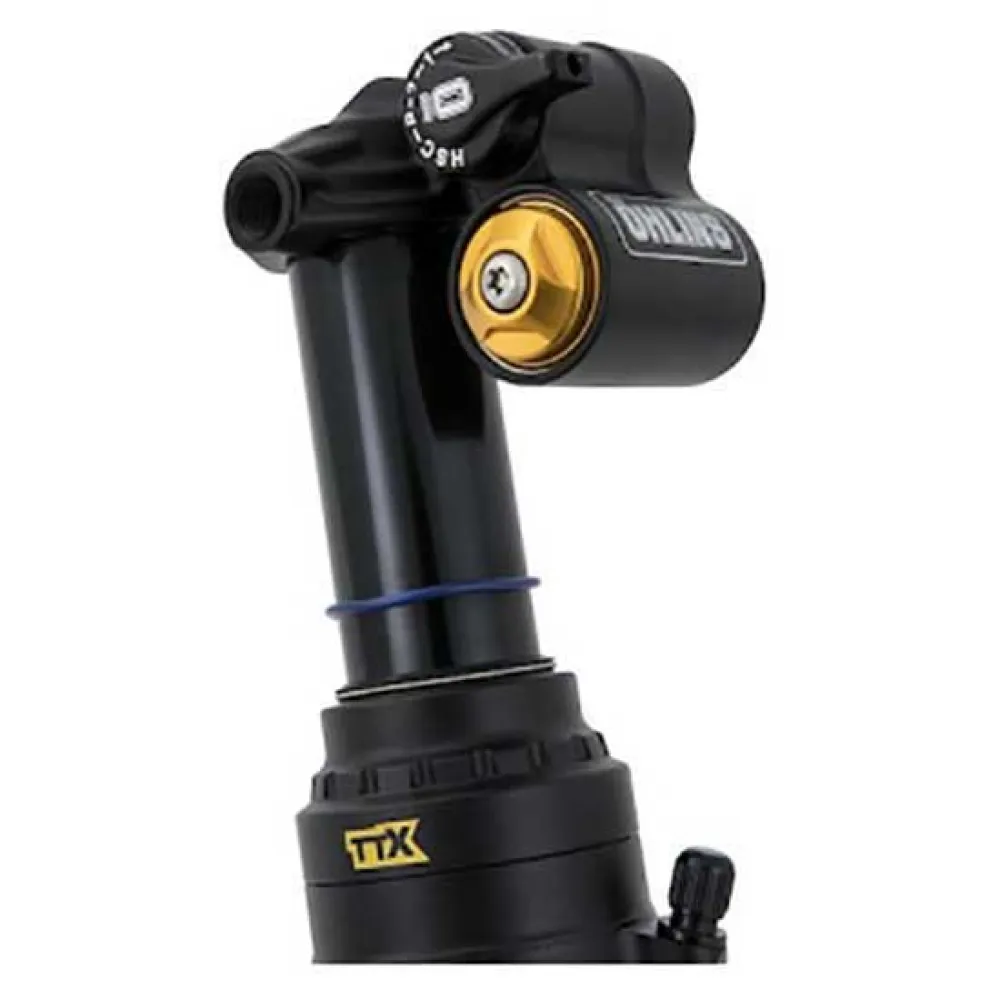

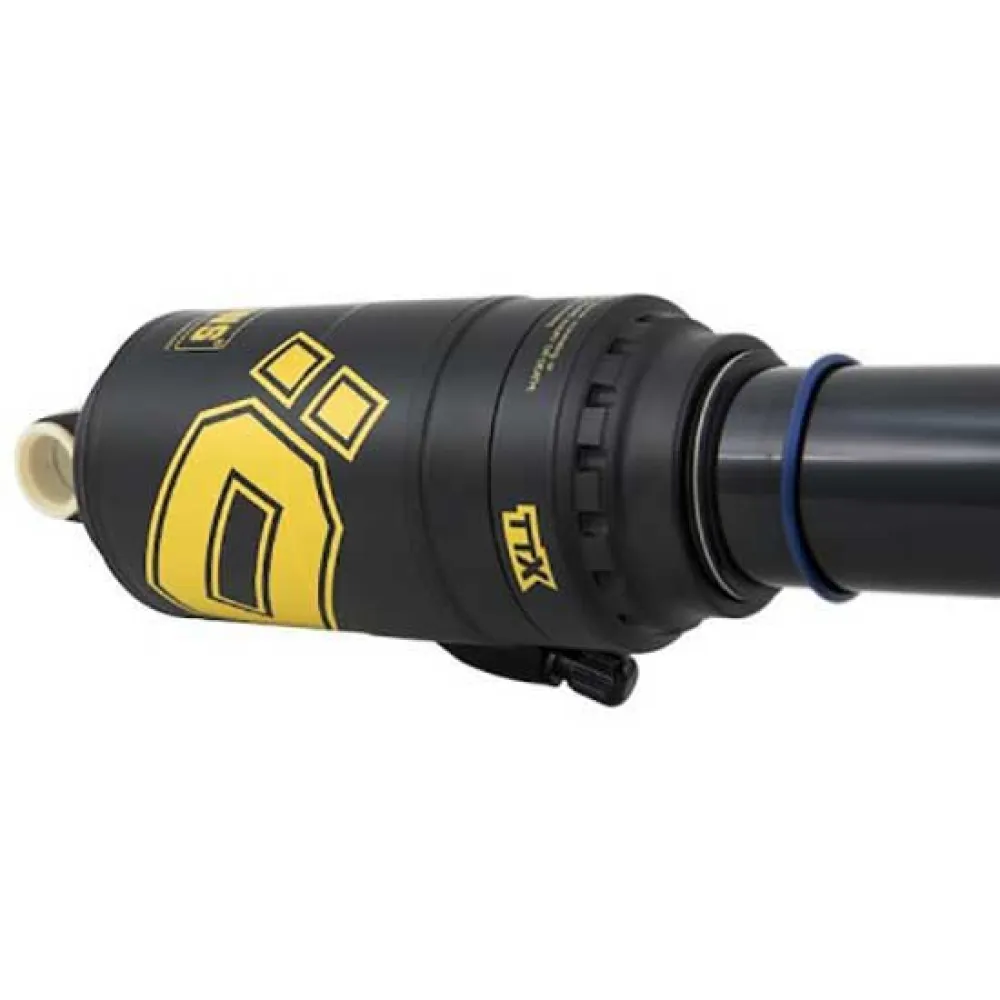

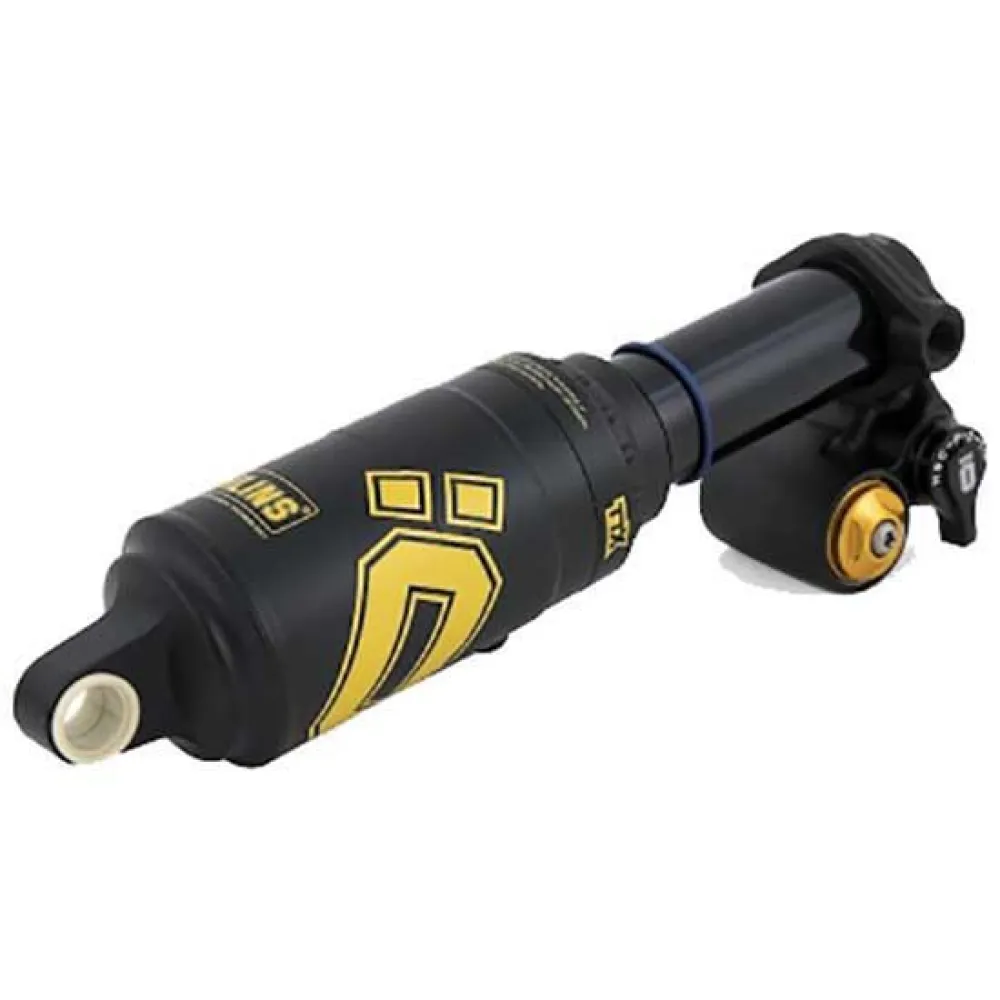

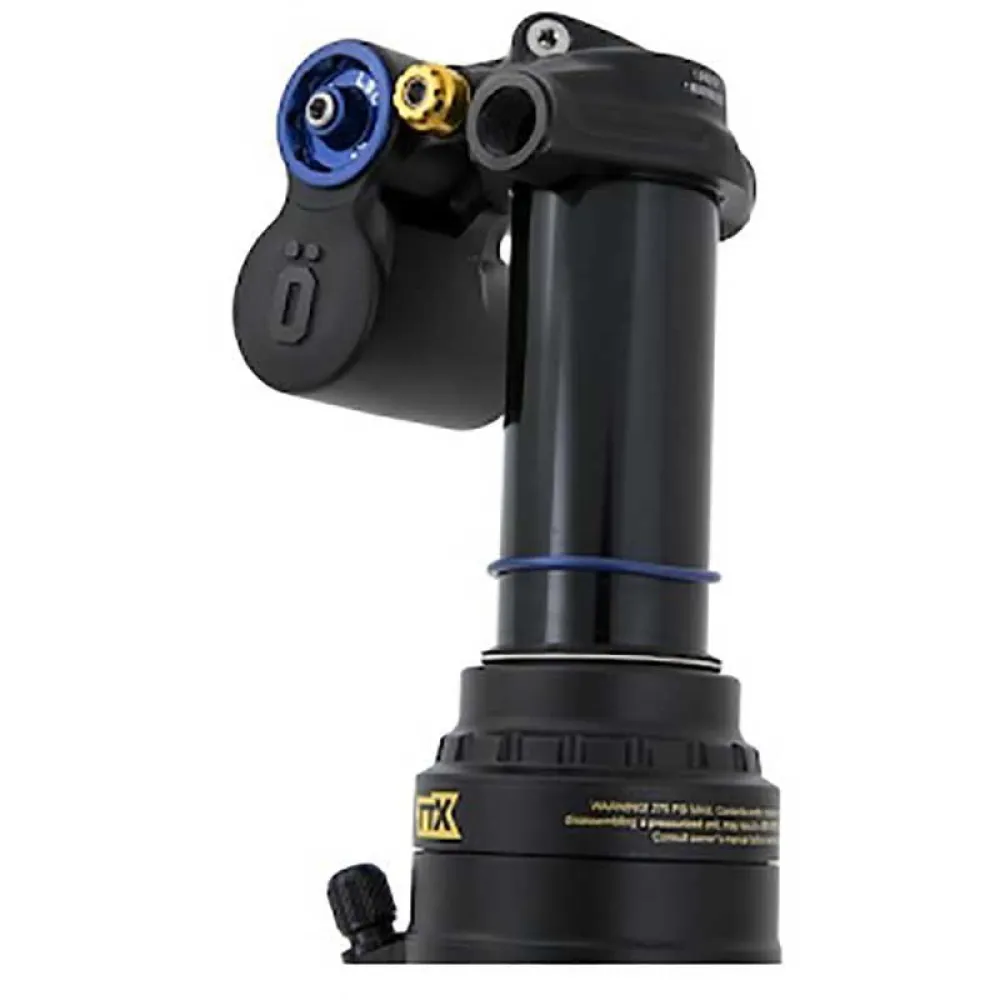

TTX Universal Trunnion MTBM 1969 Shock

Born out of the highly successful and well proven TTX22M coil shock comes the TTX2Air shock absorber. The TTX2Air combines the best of both worlds – the TTX22M´s damping performance and robustness with the light weight and the simple tuning of an air shock.
To keep a high level of suspension performance it is important to follow the service intervals. The 100-hour air spring service can be performed by the rider or by using an Öhlins authorized service center.

Features:

– Twin-tube technology (TTX)
– Pressurized system with gas reservoir
– Aluminum, hard anodized
– Serviceable, rebuildable

Technical Specifications:

– Weight ca. 410 g
– Length 205 mm
– Stroke 60 mm, 62,5 mm or 65 mm
– End-eye diameter 15 x 12,7 mm

Adjustment:
– 3 click high speed compression damping incl. pedal mode
– 10 click low speed compression damping
– 12 click low speed rebound damping
– Spring rate (via air pressure)
– Spring progression
