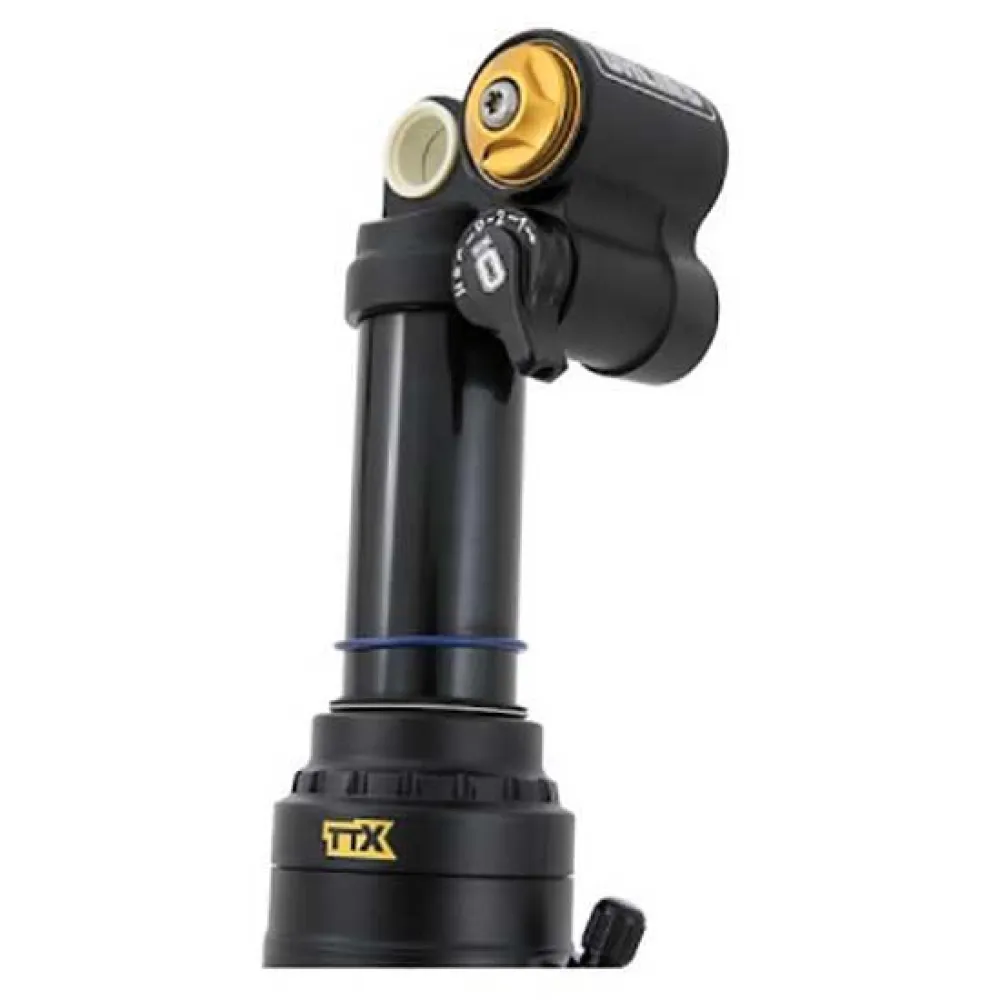

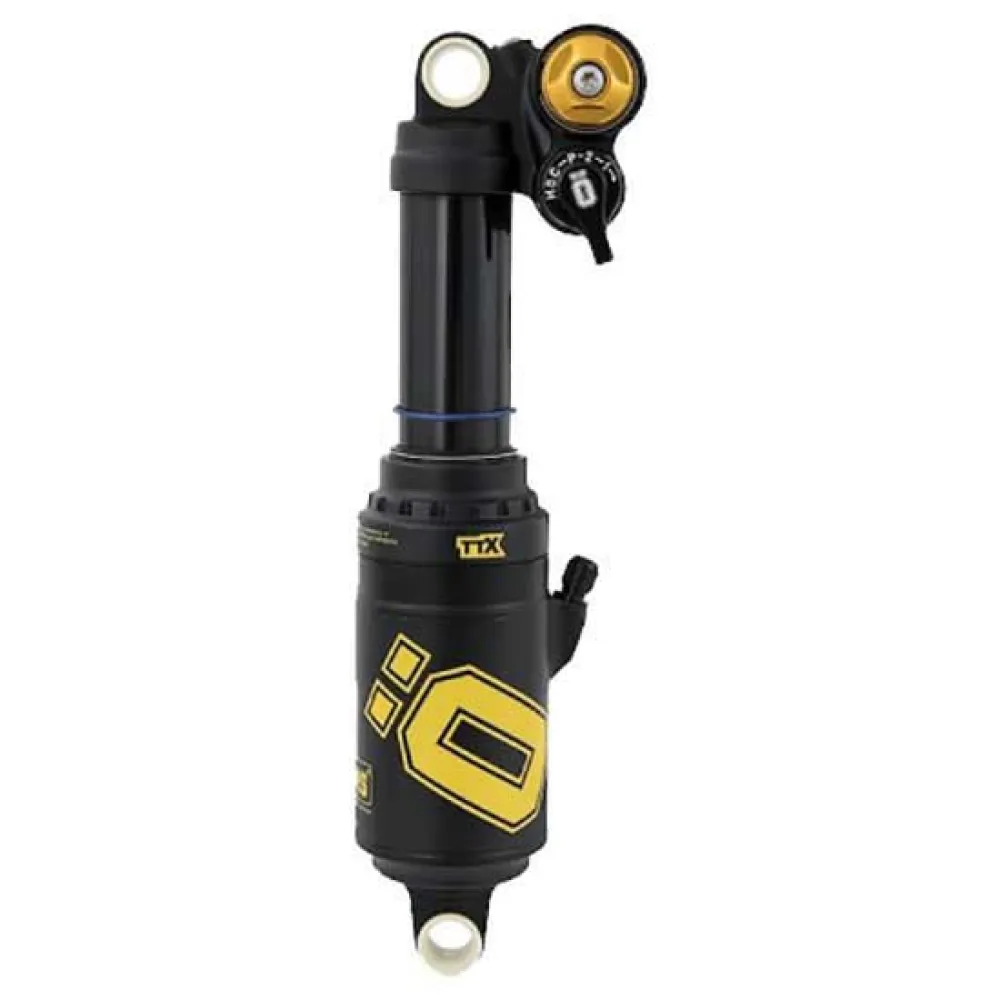

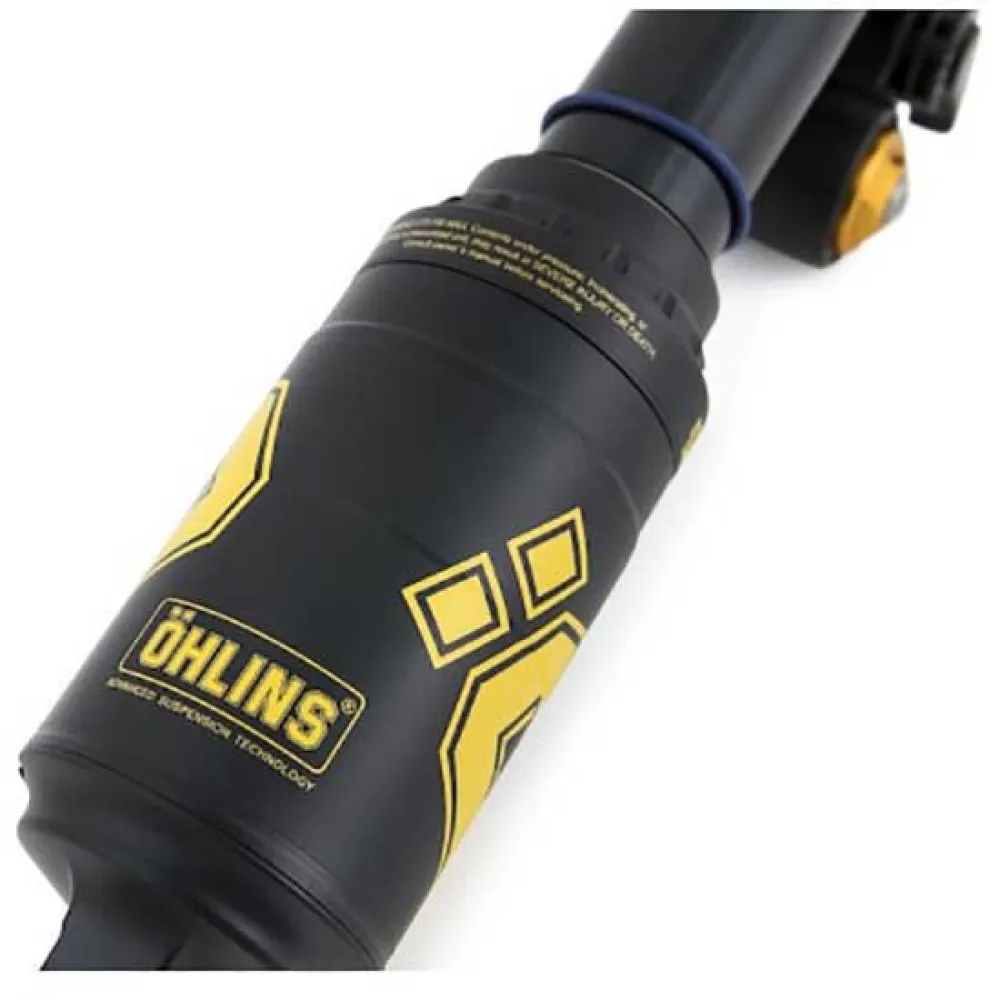

TTX Universal MTBM 1985 Shock

Born out of the highly successful and well proven TTX22M coil shock comes the TTX2Air shock absorber. The TTX2Air combines the best of both worlds – the TTX22M´s damping performance and robustness with the light weight and the simple tuning of an air shock.
To keep a high level of suspension performance it is important to follow the service intervals. The 100-hour air spring service can be performed by the rider or by using an Öhlins authorized service center.

Features:

– Twin-tube technology (TTX)
– Pressurized system with gas reservoir
– Aluminum, hard anodized
– Serviceable, rebuildable

Technical Specifications:

– Weight ca. 410 g
– Length 210 mm
– Stroke 50 mm, 52,5 mm or 55 mm
– End-eye diameter 15 x 12,7 mm

Adjustment:
– 3 click high speed compression damping incl. pedal mode
– 10 click low speed compression damping
– 12 click low speed rebound damping
– Spring rate (via air pressure)
– Spring progression
