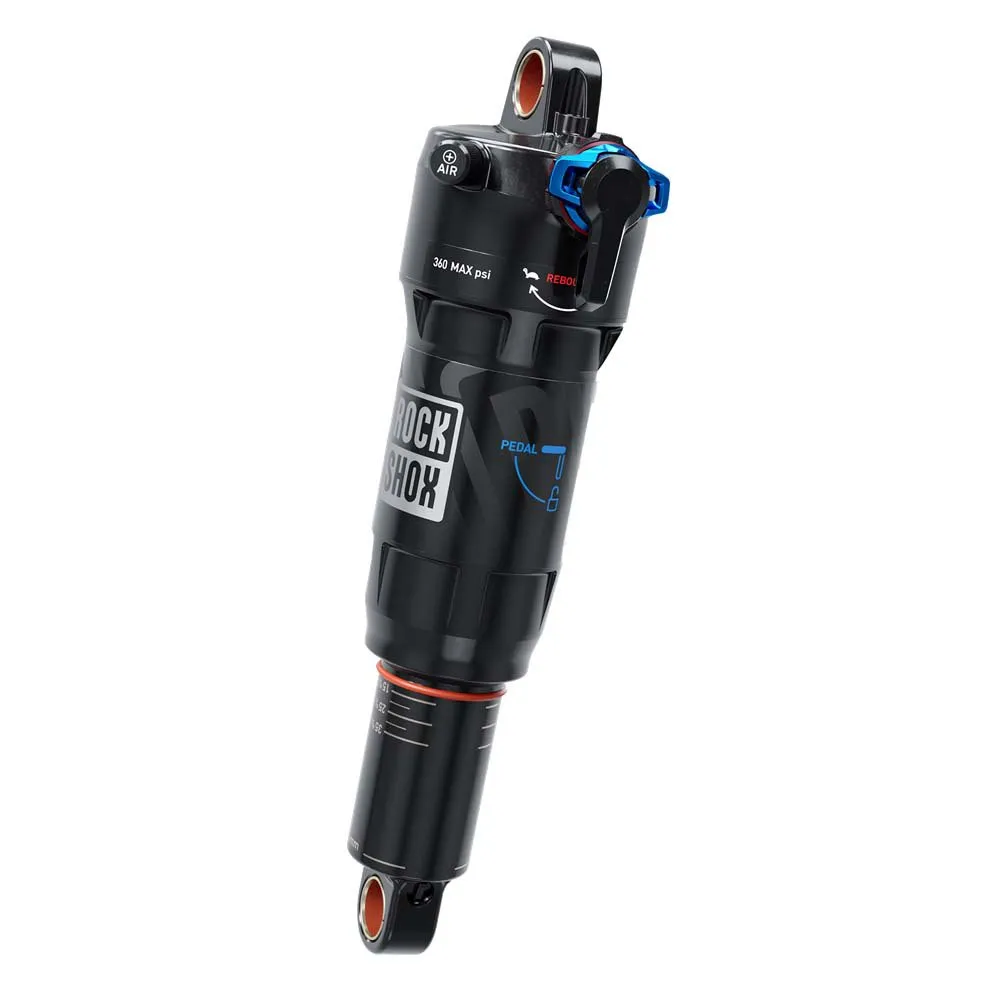

Light on ounces and heavy on capability, Deluxe Ultimate adds a touch of luxury to the latest uber-capable trail bikes. From the new DebonAir+ air spring that offers more volume tunability than ever to the damper’s independent Low Speed Compression and Rebound adjustments—every aspect was carefully designed to maximize tunability into a streamlined, minimalist package. The power is in your hands to dial in the perfect-for-you, perfect-for-the-trail-ahead settings. A custom-tailored ride, every time.
Features:
– DebonAir+ air spring maximizes fine-tuning potential, allowing you to tune both the negative and positive air volume to perfectly match your bike, desired ride feel, and the trail ahead.
– Castled bottom out bumper reduces harsh bottom out, leaving extra room for the bold to go big.
– Independent Low Speed Compression and Rebound adjustments give riders the ability to define exactly how the rear shock responds to the trail.
– Wider range of Rebound adjustment to accommodate more rider types.
– Increased bushing overlap maximizes small bump performance and grip.
– Easy access lever to intuitively go between two compression positions—Open or Threshold (firm or lock).
– Fresh premium graphics package so your bike looks as dialed it feels.
– Top-of-the-line Maxima Plush Dynamic Suspension Lube reduces friction to help maintain traction.
Specifications:
– Eye To Eye / Stroke: 165×37.5(tr), 165×40(tr), 165×42.5(tr), 165×45(tr), 170×35, 185×47.5(tr), 185×50(tr), 185×52.5(tr), 185×55(tr), 190×37.5, 190×40, 190×42.5, 190×45, 205×50(tr), 205×57.5(tr), 205×60(tr), 205×62.5(tr), 205×65(tr), 210×47.5, 210×50, 210×52.5, 210×55, 230×57.5, 230×60, 230×62.5, 230×65
– Rebound Tune: Digressive, Linear, Linear High, Progressive
– Compression Tune: D, H, L, L1, Lc, M
– Lockout Force: 320, 380
– Shaft Eyelet: Bearing, No Bushing, Standard, Trunnion
– Body Eyelet: Bearing, No Bushing, No Bushing – 90 Deg Rotation, Standard, Standard – 90 Deg Rotation
– Damper Type: Rct
– Weight (g): 313
– Weight Based On: 190×45, 1 Token, Linear Air Can, Standard/standard
Technology:
Metric Sizing:
– Metric sizing allows both suspension and frame manufacturers to simplify rear shock sizing and fitment in addition to increasing bushing overlap, which results in better traction and improved durability.
DebonAir+:
– DebonAir+ is built to strike the perfect balance of what riders really want: butter-like small bump feel, increased support throughout the travel, and higher overall ride height for more confidence when things get steep.
Maxima Plush Dynamic Suspension Lube:
– Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
