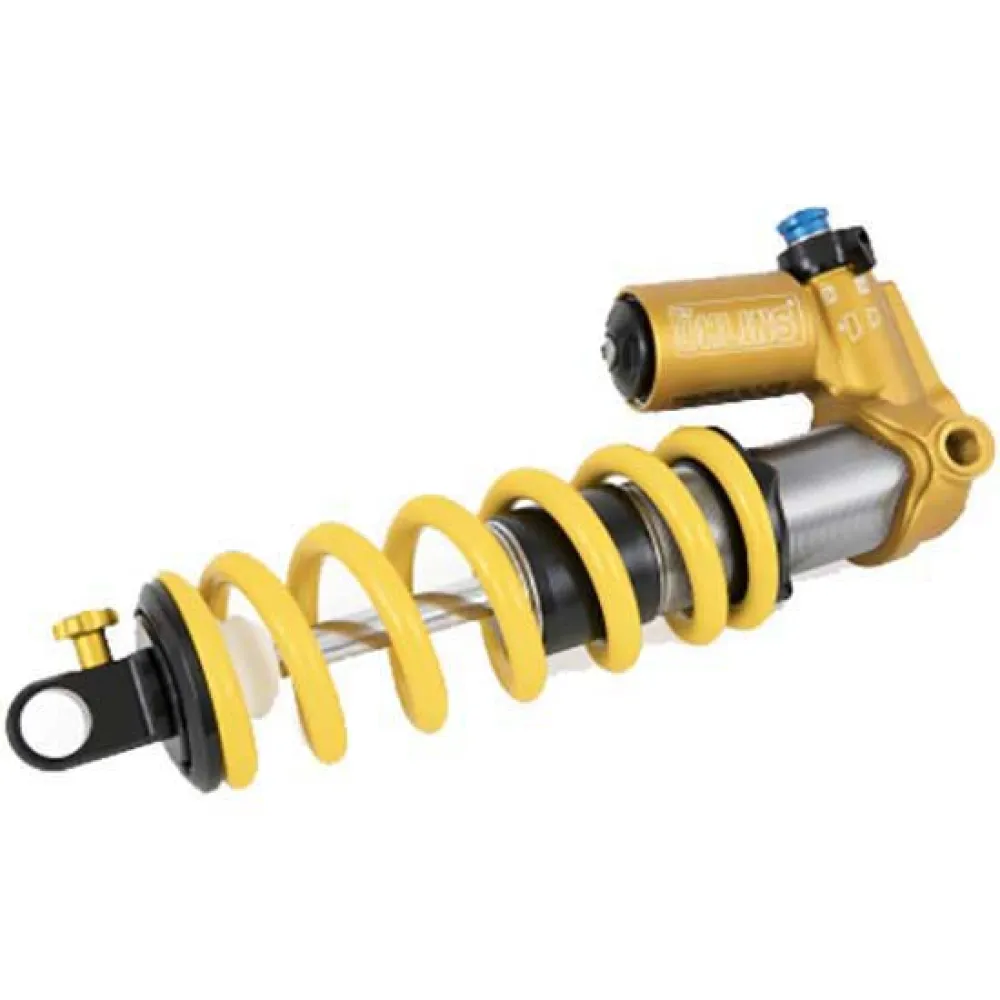

Custom Trunnion TTX 22 M 185 Mmx55 Mm Shock

The TTX22M shock absorber is designed to handle the most challenging World Cup Downhill tracks while still providing pedal efficiency for the flat and uphill sections. The twin tube design allows the gas pressure to always backup the low-pressure side of the piston to keep pressure at a controlled level. This ensures consistent damping performance on all types of terrain and improves damping response to give outstanding control of the bike and tire movements.
Low and high speed compression and rebound damping are externally adjustable. Spherical bearings is offered as an option on widths up to 22 mm, reducing friction on the shock during side loads to improve small bump sensitivity.

Technical Specifications:

– Twin-Tube-Technology (TTX)
– Weight between 425 and 460 g (without spring)
– Length 185 mm
– Stroke 55 mm
– Aluminum design, hard anodized
– Fully serviceable and rebuildable

Adjustment:
– 3 clicks high speed compression damping
– 16 clicks low speed compression damping
– 7 clicks rebound damping

Springs:
– Series 18075-(06-17) light weight
– Available in steps of 4 N/mm (23 lbs/in)
– 650 – 850 g
